DMX 3D Laser V-Tube

DMX 3D Laser V-Tube is a new lighting fixture that combines LED with laser.Other than the vertical way of installation and 3D effects,the laser pixel added to the end of the tube spices the flavor up.RGB LEDs alongside the laser beam are controllable via DMX interface.To get the best of the...

Product Details

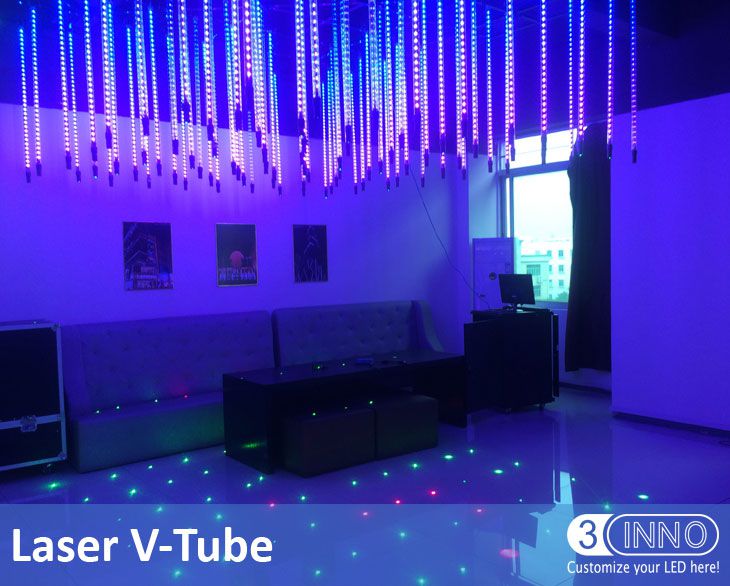

DMX 3D Laser V-Tube is a new lighting fixture that combines LED with laser.Other than the vertical way of installation and 3D effects,the laser pixel added to the end of the tube spices the flavor up.RGB LEDs alongside the laser beam are controllable via DMX interface.To get the best of the laser element,you might as well partner this fixture with a fog machine,letting laser beams presenting themselves in a good way.It operates within a 15-24V DC range and extra power supply is needed at the end of each universe if RGB colors are all on.It is great for parties,DJs,nightclubs,shows or many other entertainment uses.



LASER BEAM

Laser beam at the tube end is suggested to join a fog machine for better lighting effects.

3D

Double sided LEDs, visible for 360°

ARTNET/DMX

RGB color changing modes by any DMX devices.

WATERPROOF

IP65 rated, applicable for outdoor uses.


DMX 3D Laser V-Tube

3C-LVT-9P3C-LVT-13P3C-LVT-17PM3C-LVT-25P3C-LVT-33P
LED QTY 32pcs48 pcs64 pcs96 pcs128 pcs
Light Source

SMD 5050

Beam Angle

360°

Color of LED

RGB

Color of Laser
Green (Red indicates no DMX signal)
Voltage
 DC 15-24V
Wattage7W10W13W19W25W
Length577mm827mm1077mm1577mm2077mm
Length22.72"32.56"42.40"62.09"81.77"
Length
 IP65
Channels27CH39CH51CH75CH99CH
Protocol

DMX512

Controller

Standard DMX Interface
DMX Addressability  Manually


To have a look at the lighting effects, please go to our youtube channel:



Similar Products:

DMX 3D V-Tube

DMX 3D Silver V-Tube

DMX X-Vtube

DMX RGB LED Tube

3Cinno Group is one of the top level China dmx 3d laser v-tube manufacturers and suppliers, we are always at your service.
